Upínacia sada Eco-Fix Kit L, 98 kusov, Mitutoyo | Taurishop

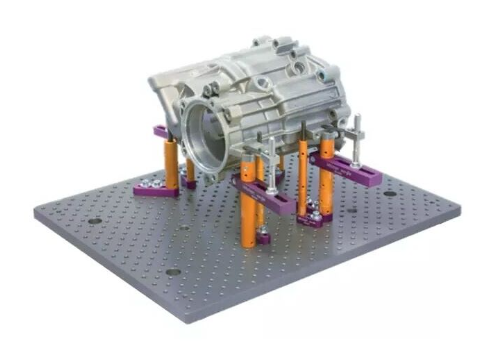

Modulárna upínacia sada eco-fix L je určená pre upnutie výrobkov pre 3D meranie na 3D súradnicových strojoch.

• rozmer základnej dosky 500 x 400 mm
• doska má mriežku zo závitových otvorov M6, vzdialenosť otvorov 18/25 mm
• v sade je 98 kusov rôznych komponentov
• hmotnosť 10660 g

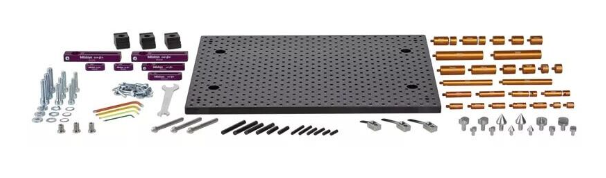

Obsah sady:

Base components

Base plate

K551533 (1 pc) - Base plate 500 x 400 mm

K551032 (3 pc) - Clamping claw

Build up components

Columns

K551024 (2 pc) - Location pin dia. 12 x 13 mm

K551025 (2 pc) - Location pin dia. 12 x 25 mm

K551026 (2 pc) - Location pin dia. 12 x 50 mm

K551027 (2 pc) - Location pin dia. 12 x 100 mm

K551028 (2 pc) - Location pin dia. 20 x 13 mm

K551029 (2 pc) - Location pin dia. 20 x 25 mm

K551030 (2 pc) - Location pin dia. 20 x 50 mm

K551031 (2 pc) - Location pin dia. 20 x 100 mm

K551040 (2 pc) - Adjustable location pin dia. 20 mm

K551041 (2 pc) - Adjustable location pin dia. 12 mm

K551042 (3 pc) - Location pin dia. 12 mm with bore 6 mm

K551043 (3 pc) - Location pin dia. 20 mm with bore 8 mm

Brackets

K551035 (2 pc) - Receiver bracket small

K551036 (1 pc) - Receiver bracket large

K551044 (1 pc) - Receiver bracket L = 90 mm, dia. 12 mm

K551045 (2 pc) - Receiver bracket L = 120 mm, dia. 20 mm

K551046 (1 pc) - Slotted nut for receiver bracket h = 12 mm

K551047 (2 pc) - Slotted nut for receiver bracket h = 15 mm

Positioning components

K550262 (2 pc) - V-block mini, dia. 12 mm

K550261 (2 pc) - Cone receiver mini, dia. 12 mm

K550250 (1 pc) - Stopper element mini, dia. 6 mm

K550247 (1 pc) - Back square mini, dia. 6 mm

K550058 (2 pc) - V-block

K550365 (2 pc) - Cone receiver

K550982 (1 pc) - Stopper element

K550248 (1 pc) - Back square

K550888 (2 pc) - Straight pin dia. 6 x 20 mm

K550889 (2 pc) - Straight pin dia. 6 x 30 mm

K550890 (2 pc) - Straight pin dia. 6 x 40 mm

K550000 (2 pc) - Straight pin dia. 8 x 30 mm

K550001 (2 pc) - Straight pin dia. 8 x 50 mm

K550002 (2 pc) - Straight pin dia. 8 x 65 mm

Clamping components

K550716 (3 pc) - Straight pin with thread, M6 x 75 mm

K550279 (2 pc) - Straight clip, dia. 8 mm, L = 60 mm

K550554 (1 pc) - Straight clip, dia. 8 mm, L = 40 mm

Screws and Washers

K550563 (6 pc) - Cylinder head screw M6 x 25 mm

K550110 (6 pc) - Cylinder head screw M6 x 20 mm

K550591 (12 pc) - Washer dia. 6,4 mm x dia. 17 mm

Tools

K551050 (1 pc) - Allen key 2 mm

K551051 (1 pc) - Allen key 3 mm

K551052 (1 pc) - Allen key 4 mm

K551053 (1 pc) - Allen key 5 mm

K551054 (1 pc) - Double open-ended spanner 10-17
