Upínacia sada exo-fix MAG-L, 79 kusov, Mitutoyo | Taurishop

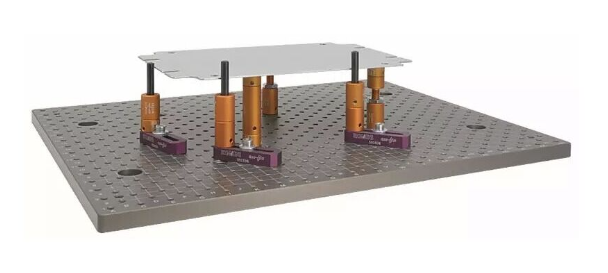

Modulárna upínacia sada eco-fix MAG-L je určená pre upnutie výrobkov pre 3D meranie na 3D súradnicových strojoch.

• rozmer základnej dosky 500 x 400 mm
• doska má mriežku zo závitových otvorov M6, vzdialenosť otvorov 18/25 mm
• v sade je 79 kusov rôznych komponentov
• hmotnosť 10000 g

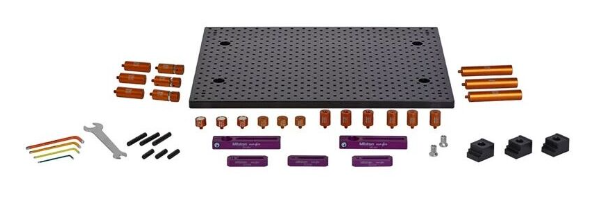

Obsah sady:

Base components

Base plate

K551533 (1 pc) - Base plate 500 x 400 mm

K551032 (2 pc) - Clamping claw

Build up components

Columns

K551028 (3 pc) - Location pin dia. 20 x 13 mm

K551029 (3 pc) - Location pin dia. 20 x 25 mm

K551030 (3 pc) - Location pin dia. 20 x 50 mm

K551031 (3 pc) - Location pin dia. 20 x 100 mm

K551040 (3 pc) - Adjustable location pin dia. 20 mm

K551043 (3 pc) - Location pin dia. 20 mm with bore 8 mm

Brackets

K551036 (3 pc) - Receiver bracket large

K551045 (2 pc) - Receiver bracket L = 120 mm, dia. 20 mm

Positioning components

K550000 (3 pc) - Straight pin dia. 8 x 30 mm

K550001 (3 pc) - Straight pin dia. 8 x 50 mm

Clamping components

K551074 (3 pc) - Magnetic receiver dia. 20 mm

Screws and Washers

K550563 (10 pc) - Cylinder head screw M6 x 25 mm

K550110 (10 pc) - Cylinder head screw M6 x 20 mm

K550591 (20 pc) - Washer dia. 6,4 mm x dia. 17 mm

Tools

K551050 (1 pc) - Allen key 2 mm

K551051 (1 pc) - Allen key 3 mm

K551052 (1 pc) - Allen key 4 mm

K551053 (1 pc) - Allen key 5 mm

K551054 (1 pc) - Double open-ended spanner 10-17
