Upínacia sada exo-fix MAG-S, 70 kusov, Mitutoyo | Taurishop

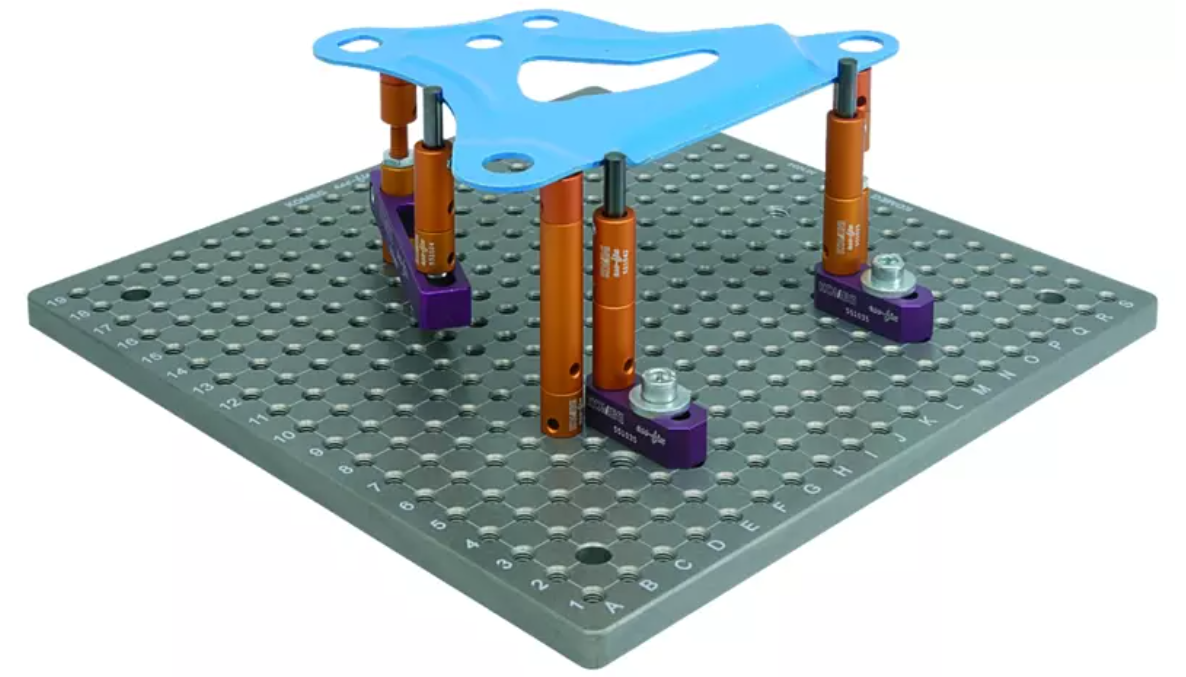

Modulárna upínacia sada eco-fix MAG-S je určená pre upnutie výrobkov pre 3D meranie na 3D súradnicových strojoch.

• rozmer základnej dosky 250 x 250 mm
• doska má mriežku zo závitových otvorov M6, vzdialenosť otvorov 12,5 mm
• v sade je 70 kusov rôznych komponentov
• hmotnosť 2570 g

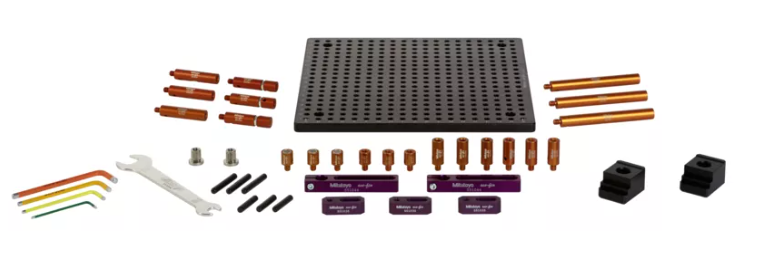

Obsah sady:

Base components

Base plate

K551034 (1 pc) - Base plate 250 x 250 mm

K551032 (2 pc) - Clamping claw

Build up components

Columns

K551024 (3 pc) - Location pin dia. 12 x 13 mm

K551025 (3 pc) - Location pin dia. 12 x 25 mm

K551026 (3 pc) - Location pin dia. 12 x 50 mm

K551027 (3 pc) - Location pin dia. 12 x 100 mm

K551041 (3 pc) - Adjustable location pin dia. 12 mm

K551042 (3 pc) - Location pin dia. 12 mm with bore 6 mm

Brackets

K551035 (3 pc) - Receiver bracket small

K551044 (2 pc) - Receiver bracket L = 90 mm, dia. 12 mm

K551046 (2 pc) - Slotted nut for receiver bracket h = 12 mm

Positioning components

K550889 (3 pc) - Straight pin dia. 6 x 30 mm

K550890 (3 pc) - Straight pin dia. 6 x 40 mm

Clamping components

K551073 (3 pc) - Magnetic receiver dia. 12 mm

Screws and Washers

K550563 (5 pc) - Cylinder head screw M6 x 25 mm

K550110 (10 pc) - Cylinder head screw M6 x 20 mm

K550591 (15 pc) - Washer dia. 6,4 mm x dia. 17 mm

Tools

K551050 (1 pc) - Allen key 2 mm

K551051 (1 pc) - Allen key 3 mm

K551052 (1 pc) - Allen key 4 mm

K551053 (1 pc) - Allen key 5 mm

K551054 (1 pc) - Double open-ended spanner 10-17
